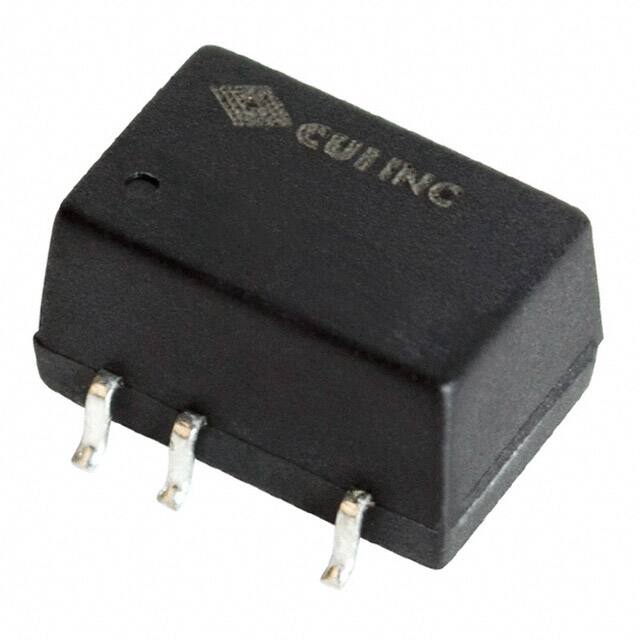

Factory Lead Time

9 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

8-SMD Module, 5 Leads

Operating Temperature

-40°C~105°C With Derating

Packaging

Tube

Series

PDS1-M (1W)

Published

2016

Size / Dimension

0.50Lx0.33W x 0.29 H 12.7mmx8.3mmx7.3mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

1W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

8/5

JESD-30 Code

R-PDMA-G5

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

82%

Voltage - Isolation

1.5kV

Voltage - Input (Max)

26.4V

Output Voltage

24V

Max Output Current

42mA

Voltage - Input (Min)

21.6V

Input Voltage-Nom

24V

Trim/Adjustable Output

NO

Output Power

1W

Total Power Output-Max

1W

Isolation

Isolated

Features

SCP

Height

7.112mm

Width

8.3mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
